High-Speed Printing
Experience unparalleled efficiency with the Tronxy VEHO 600 Pro, boasting a maximum printing speed of 300mm/s and an impressive acceleration of 10000/s². This capability ensures rapid production without compromising quality, making it ideal for both professional and hobbyist applications.
Advanced Klipper Firmware
The VEHO 600 Pro is equipped with the Klipper system, enhancing functionality and simplifying operations. This user-friendly firmware allows for easy learning and customization, empowering users to maximize their 3D printing experience with advanced features and improved performance.
Robust Build Quality
Constructed with durable OSG dual-axis metal guide rails, the VEHO 600 Pro ensures smooth operation and longevity. This robust design minimizes vibrations and enhances stability, allowing for precise and consistent prints, even during extended use.
Rapid Heating Technology
The printer's hot bed utilizes AC preheating technology, achieving optimal temperatures quickly and uniformly. With a maximum nozzle temperature of 325°C, the VEHO 600 Pro is capable of handling a wide range of materials, ensuring versatility in your projects.
Smart Filament Detection
Stay worry-free with the built-in filament detector that alerts you when filament is running low or disconnected. This feature pauses the printing process, allowing you to replace the filament and resume printing seamlessly, ensuring minimal downtime.
User-Friendly Interface
The VEHO 600 Pro features a full-color touch screen that supports eight languages, making it accessible for users worldwide. This intuitive interface simplifies navigation and operation, allowing you to focus on your creative projects without technical distractions.
Veho 600 Pro V2 (Klipper Firmware) Features
- Maximum printing speed is 300mm/s, and the acceleration is 10000/s².
- Light weight print head combined with Corexy structure, more conducive to high speed running.
- X-axis adopts a linear guide rail.
- Use of the Klipper system can expand functionality, make operation simple, and be easy to learn.
- Hot bed adopts frosted double sided printed PEI magnetic steel plate, carbon crystal silicon coated lattice glass.
- Preheating of the hot bed adopts AC, with a short heating time and uniform heating of each part.
- Printing head is heated using ceramic sheets, with a fast heating speed.
- Extruder adopts an all metal mini extruder and 36 stepper motor circular cake motor, making the extrusion lightweight and smooth.
- X/Y axis adopts a 42 step high-speed motor 48.
- X/Y belt applies spring mechanical thrust to automatically adjust the appropriate tension of the belt.
- The machine is equipped with lighting, and the switch can be controlled according to the demand.
- Communication connection WI-FI / Ethernet cable connection, convenient for remote control.

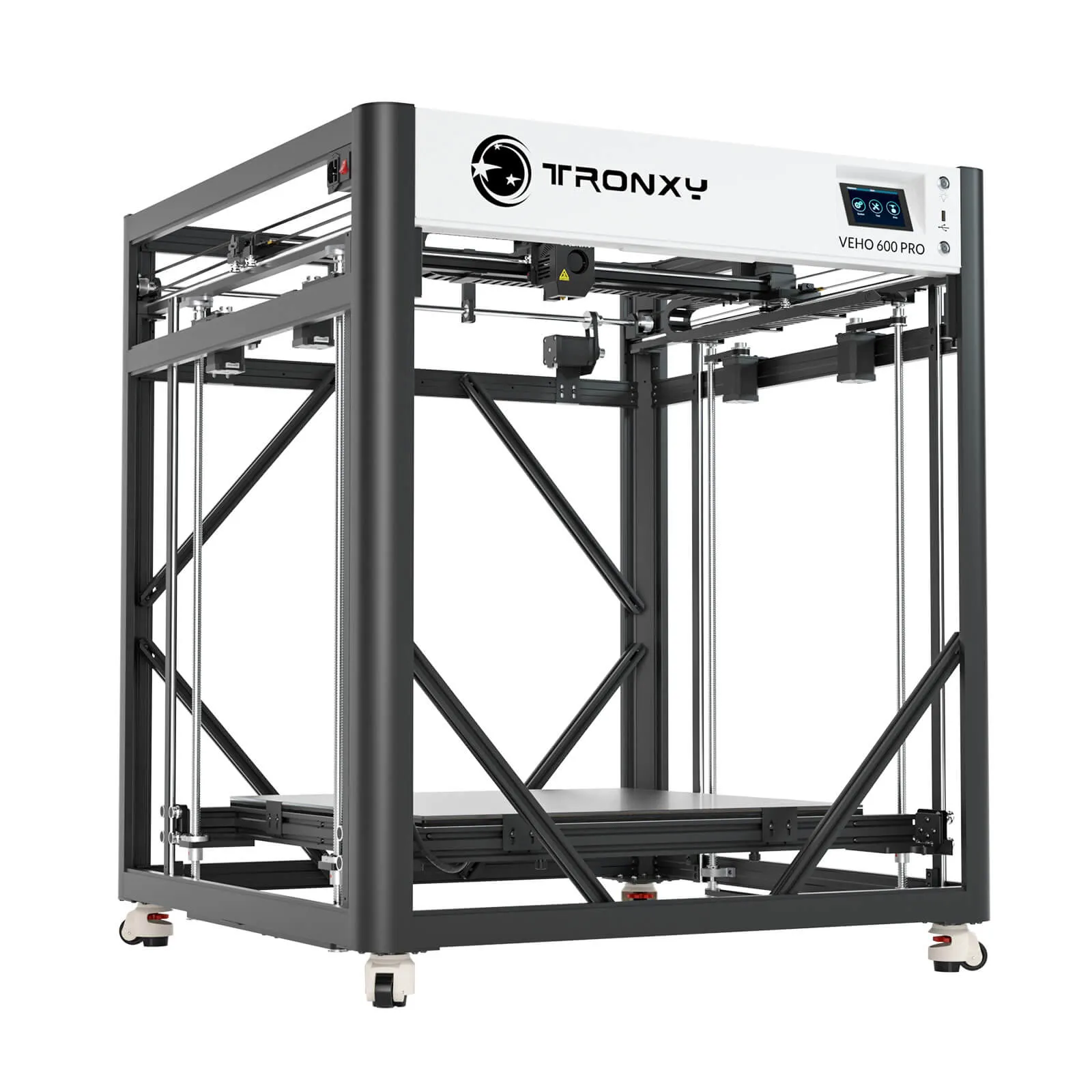

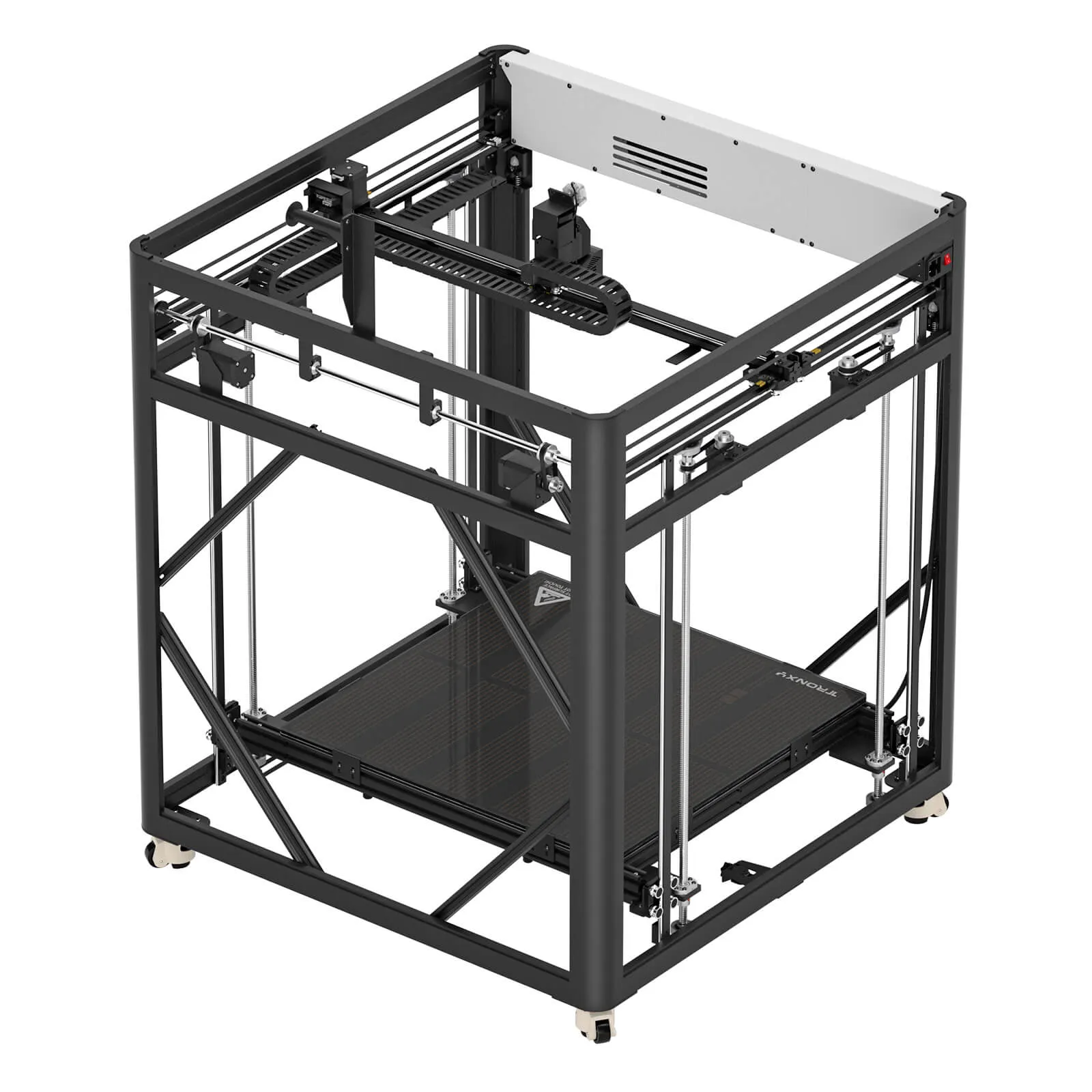

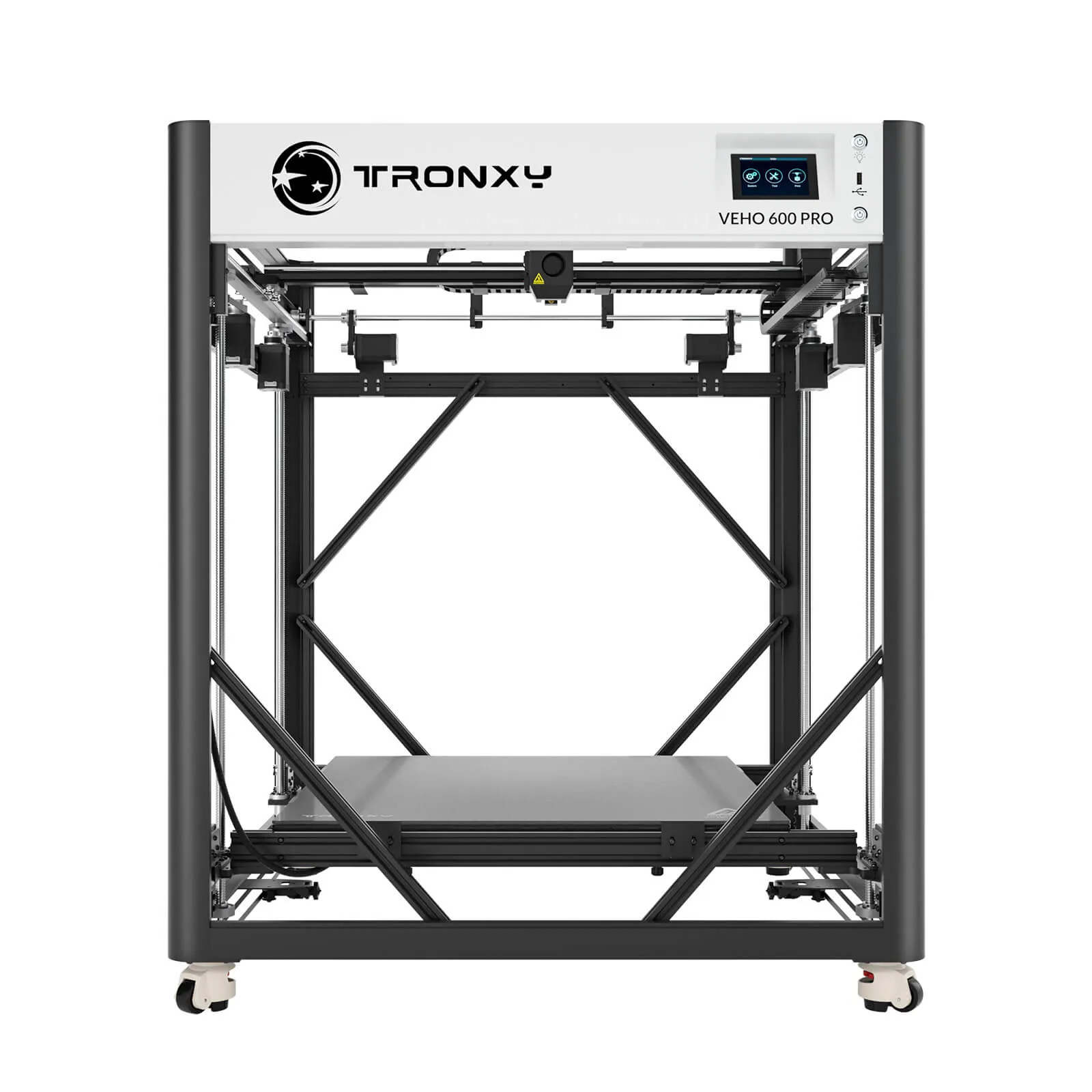

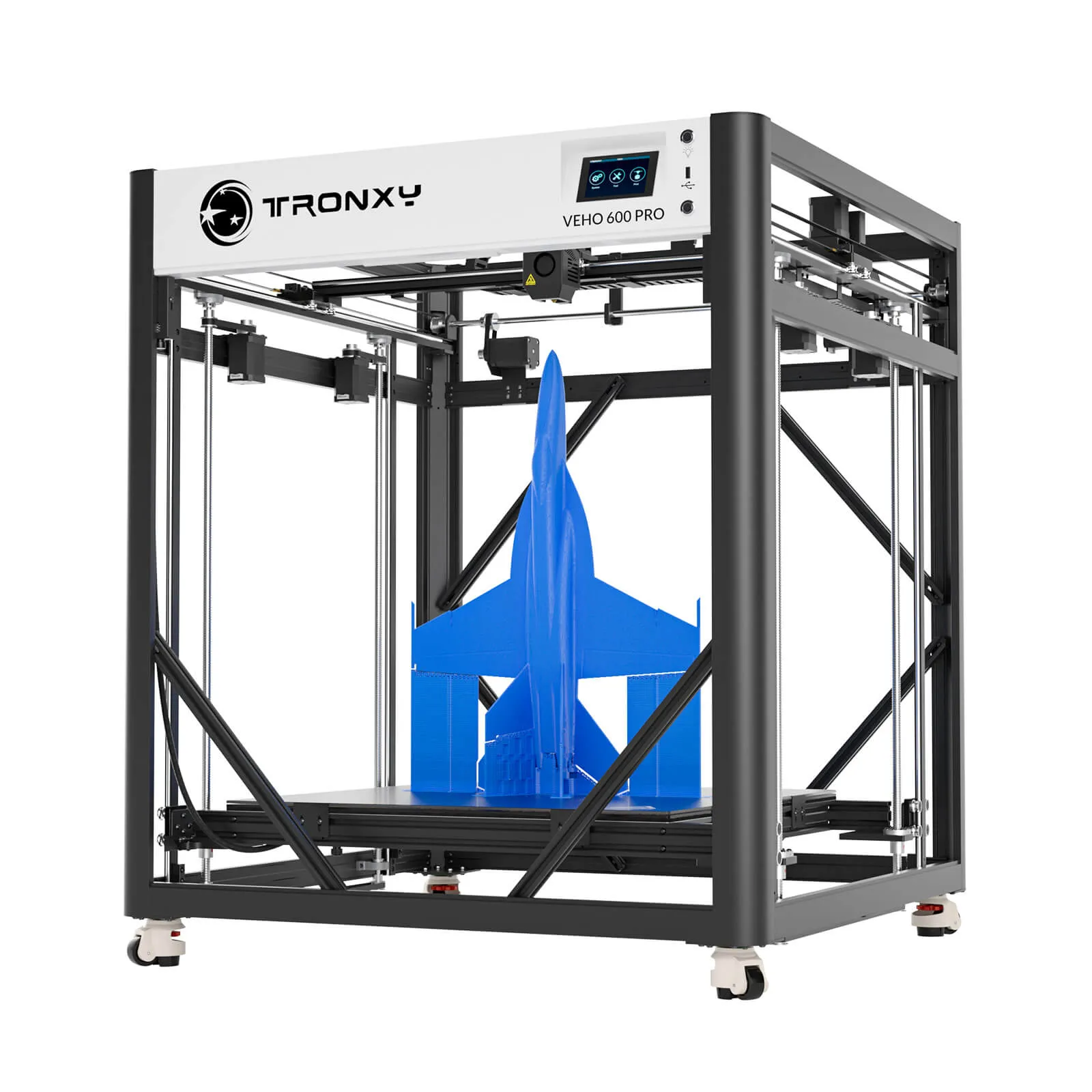

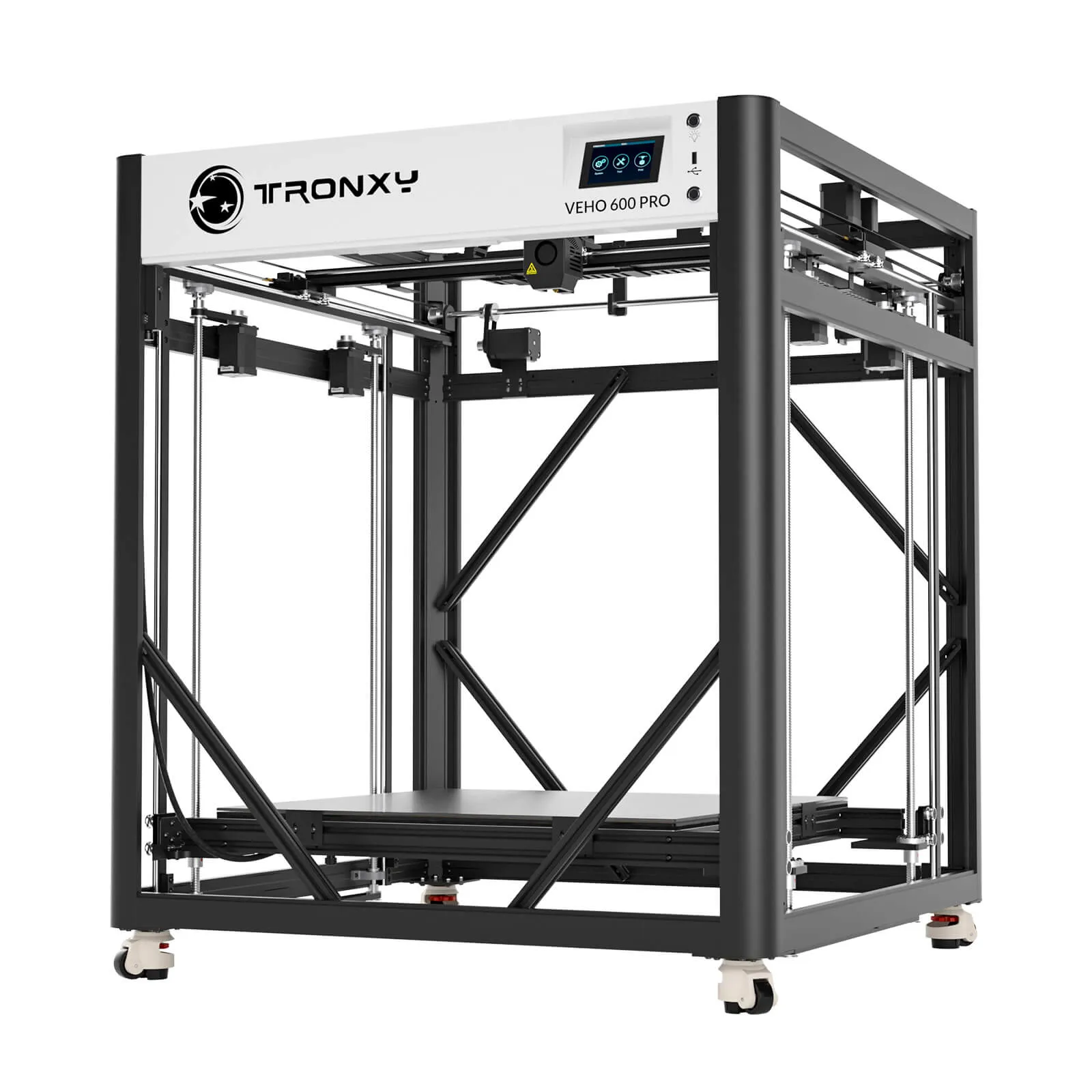

Tronxy VEHO 600 Pro Large 3D Printer Direct Drive 3D Printer 600x600x600mm Printer Klipper Firmware High-speed Printing Dual Drive Extruder FDM 3D Printing
VEHO 600 Pro
●Large Size Printing ●Ball Screw ●Double Axis Core Metal Guide Rail

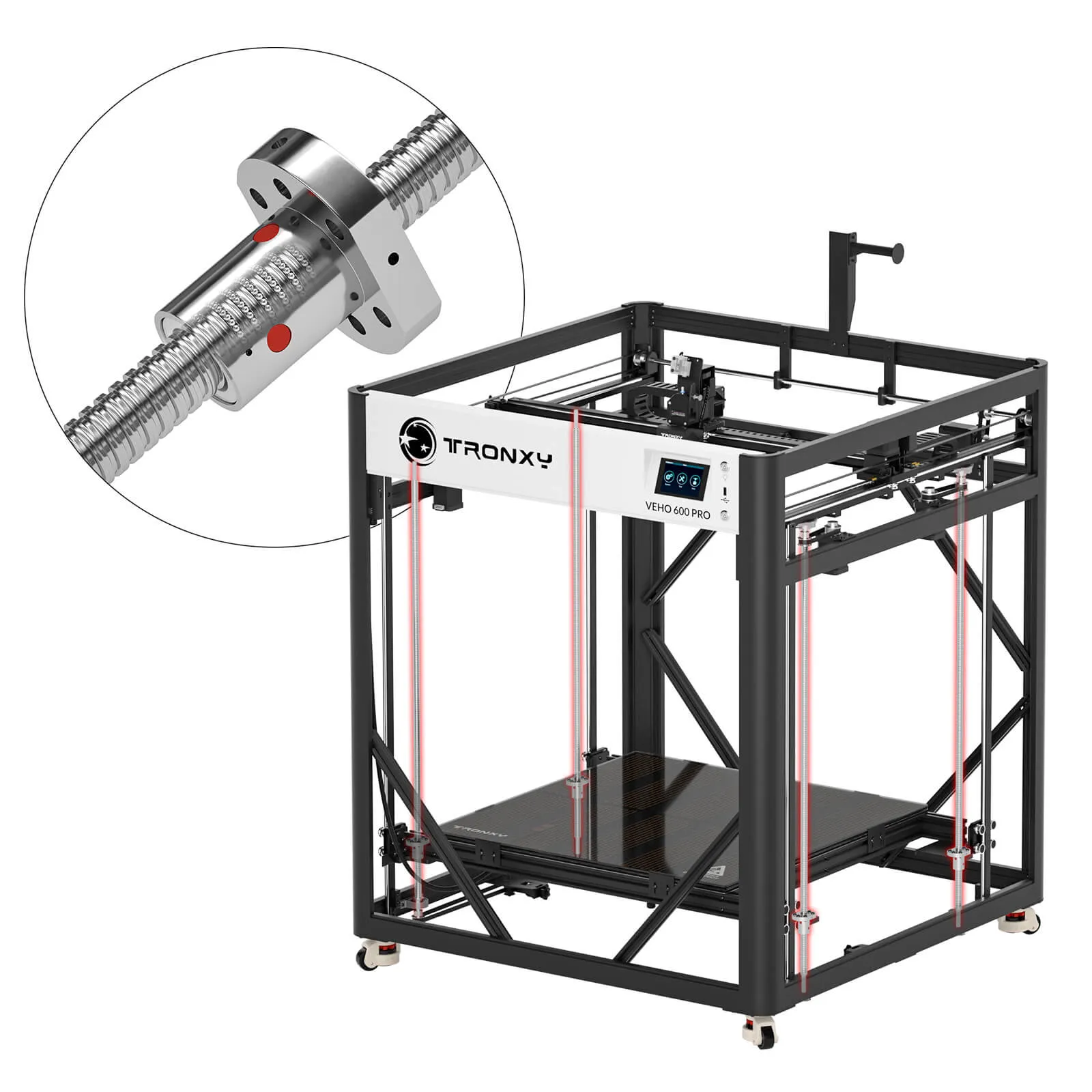

Configure Four Ball Screws
The ball screw transmission system is a point contact rolling motion, with low friction resistance, high sensitivity, no vibration during startup, and no crawling phenomenon at low speeds. Therefore, it can precisely control micro feed.

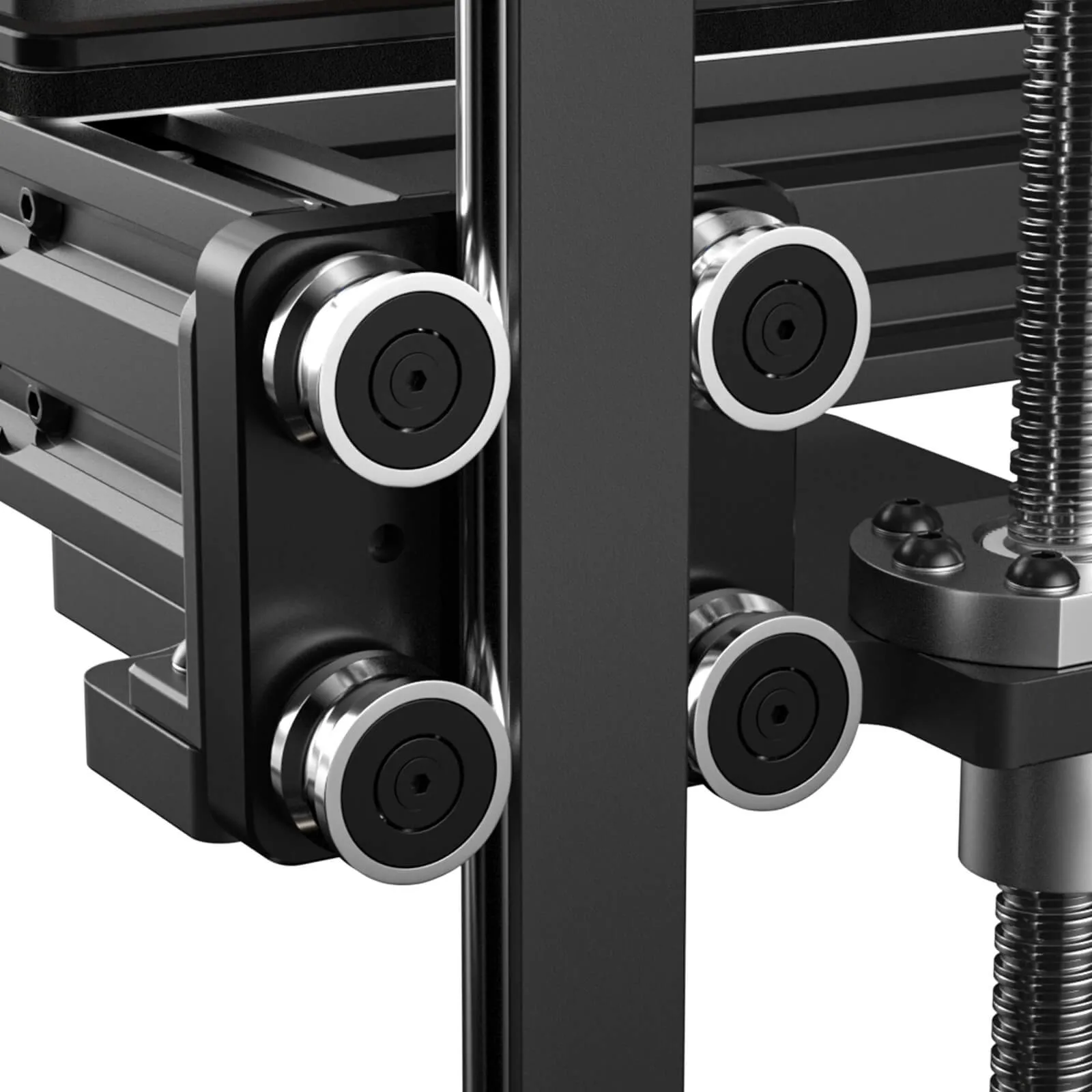

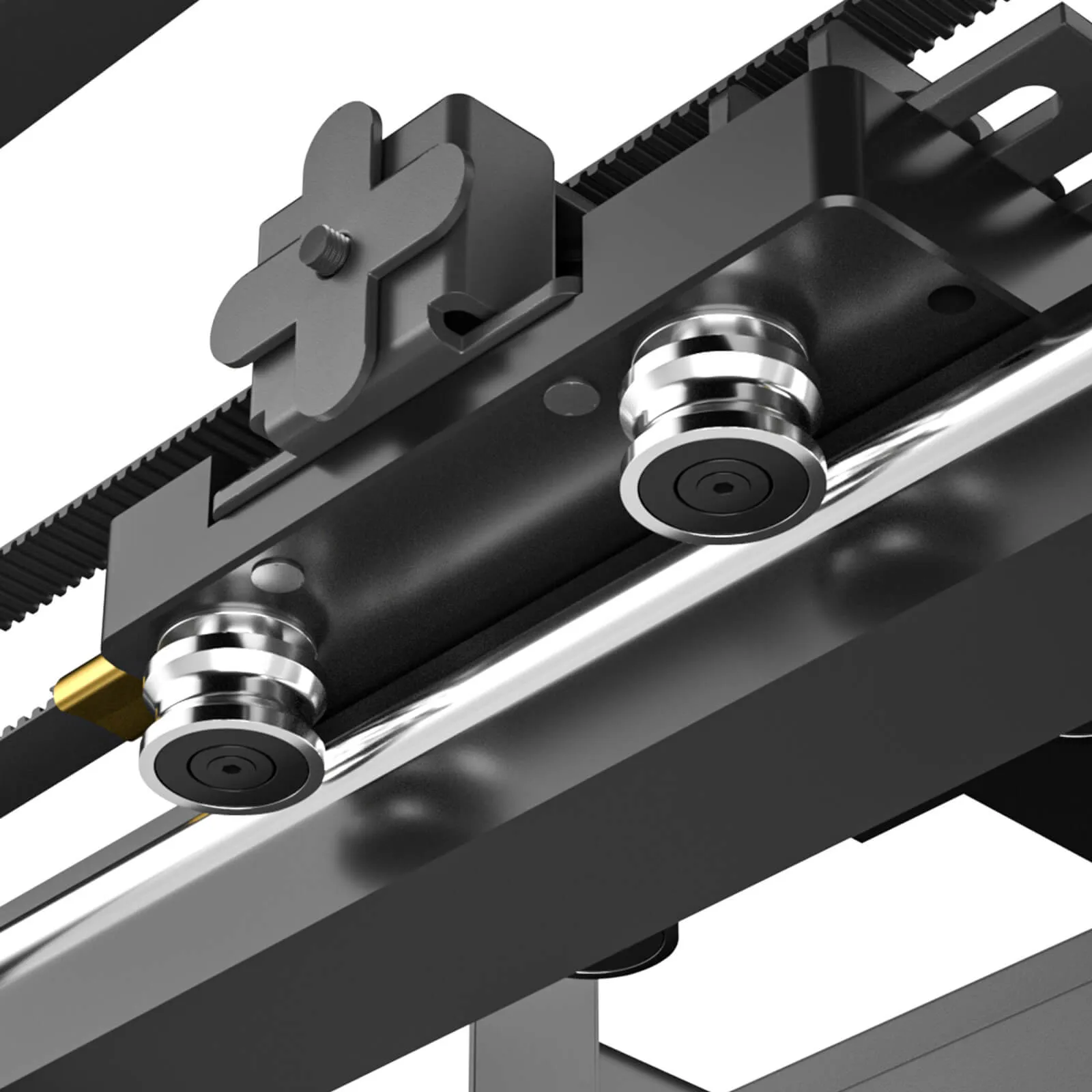

More Stable and Durable Metal Guide Rails
All guide rails are made of OSG external dual axis metal guide rails, which make the XYZ axis run smoother and have a longer lifespan.
Stronger Motor
Four Z-axis motors drive to ensure more stable printing.
High Temperature Printing Head Heats Up Quickly
It only takes 130 seconds to rise to 300°C at room temperature, and the maximum temperature of the nozzle can reach 325 °C.
Better Cooling System
The print head uses a turbo blower fan with a speed of up to 9000RPM, allowing the model to solidify quickly and improving the printing success rate.
Resume After Power Failure
If there is a sudden power outage during the printing process, the system will automatically save the printing progress. After power on, you can continue printing.

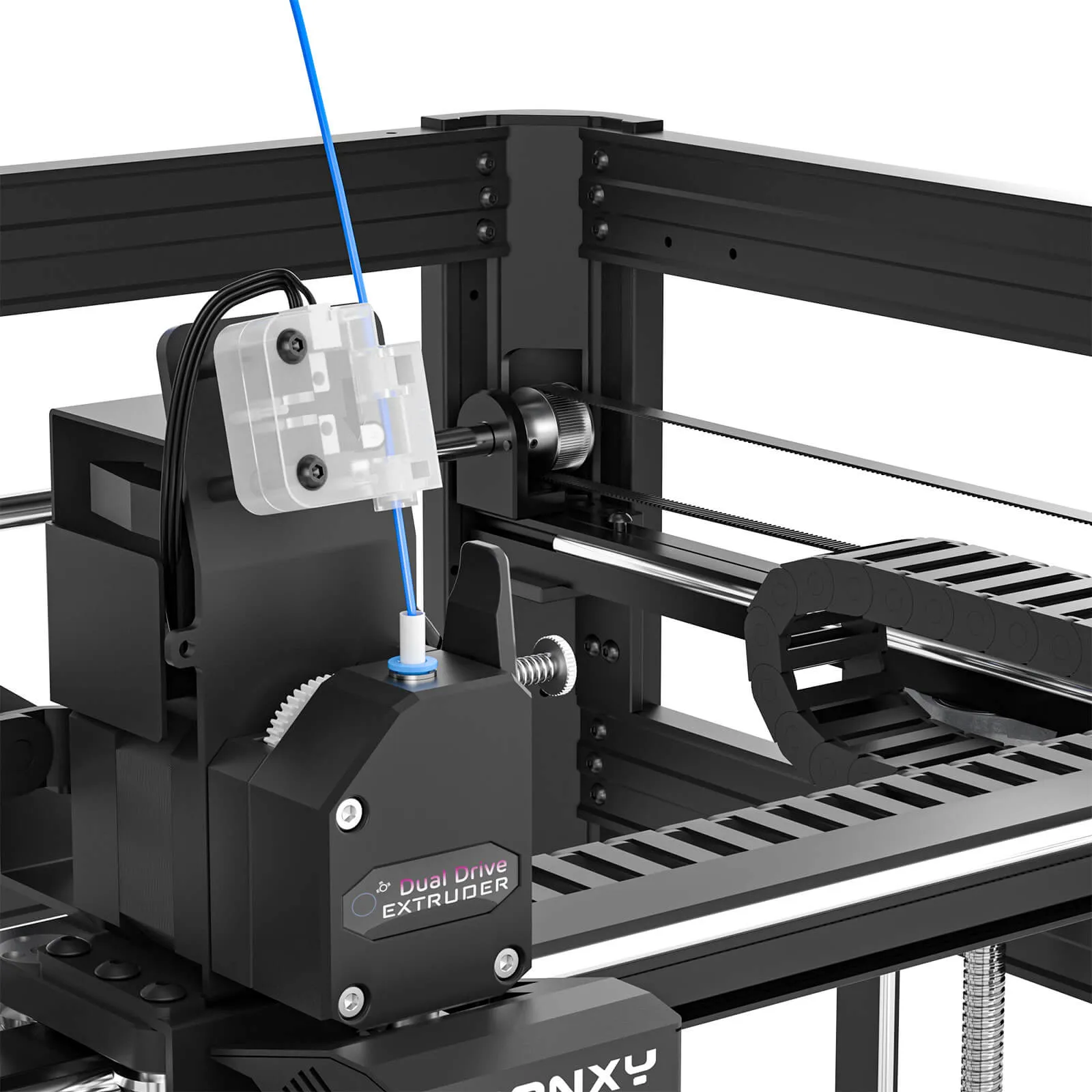

Dual Drive Extruder for Proximal Extrusion
Dual drive extruder can use consumables of 1.75mm and 2.85mm, compatible with various materials such as PLA, TPU, PETG, ABS, and other common consumables on the market. Near end extrusion is more conducive to printing flexible consumables.
Filament Detector
When it is detected that the filament is running out or disconnected, an alarm can be sounded in a timely manner and printing can be paused. After inserting the filament, printing can continue.
Lattice Glass Hot Bed
The surface of the lattice glass is covered with a layer of lattice coating, which can improve the adhesion of consumables after heating. Once the hot bed cools down, the model can be easily removed.
Supports Eight Languages
Full color touch screen control, easy to operate and use, system languages support English, Chinese, Japanese, Korean, Russian, French, German, and Spanish.
Adjustable Pulley Foot Pad
Equipped with manually adjustable pulley foot pads for convenient movement of large-sized machines.
●Raise the foot mat to easily move the machine. ●Lower the foot mat, the machine cannot be moved.
TR Sensor Automatic Leveler
The TR Sensor automatic leveling sensor is suitable for all non transparent platforms and has 25 detection points, making platform leveling more accurate.
Specification:
Printing principle: FDMPrint Size: 600*600*600mm
Print Accuracy: 0.1-0.4mm
Print Principle: FDM (Fused Deposition Molding)
Nozzle Size: Standard 0.6mm (1 free random size)
Nozzle Compatible with: 0.4/0.8/1.0/1.2/1.5/2.0mm
Nozzle Quanity: 1
Print Speed: 20-150mm/s (Advise 60mm/s)
Position Accuracy: X/Y - 0.00625mm, Z - 0.00125mm
Filaments Support: PLA, TPU, ABS, Wood, PC, HIPS, Wooden filament etc.
Print Environment: 8-40℃
Nozzle Temp 325℃ （MAX)
Machine Size: 847*847*970mm
Machine weight: ≈45kg
Package A Size: 785*672* 205mm
Package A Weight: ≈26.4kg
Package B Size: 995*302* 280mm
Package B Weight: ≈26.3kg
Veho 600 Pro / VEHO 600 Pro V2
Veho 600 Pro / VEHO 600 Pro V2
(scroll to view all)
| Model | Veho 600 Pro | Veho 600 Pro V2 |
| Printer | ||
| Machine Type | DIY / Complete Machine with Door (Optional) | DIY / Complete Machine with Door (Optional) |
| System | Marlin | Klipper |
| Heating Method | Silicone Hot Bed (AC Heating) | Silicone Hot Bed / Glass Hot Bed (AC Heating) |
| Outer frame reinforcement | Before and Back | Before and Back |
| Dual Z-axis Limit Mode | Double Upper Limit (Manual Adjustment) | 3D Touch (Automatic Adjustment) |
| Software Automatically Leveling Left and Right | Yes | Yes |
| Automatic Leveling | Support | Support |
| Print Head | 20pin Integrated Ribbon Cable (Detachable Integrated) | 20pin Integrated Ribbon Cable (Detachable Integrated) |
| Platform Adjustment Points | 20 Points | 36 Points |
| Motion Structure | MakerBot | Corexy |
| Frame | Aluminum Profile, Sheet Metal | Aluminum Profile, Sheet Metal |
| Maximum Nozzle Temperature | 300 °C | 300 °C |
| Nozzles | Copper Plated Color, Nickel Plated | Copper Plated Color, Nickel Plated |
| Screen | 3.5 Inch Full Color Touch Screen | 4.3 Inch Full Color Touch Screen |
| Platform Material | Tempered Glass, Silicone Hot Bed | Frosted double-sided Printed PEI Magnetic Steel Plate, Crbon Crystal Silicon Coated Lattice Glass |
| Maximum Temperature of Hot Bed | 100 °C 10 Minutes | |
| Input Voltage | 110-230V 50-60HZ | ZL-CB240W24V 50/60HZ |
| Output | 24V/240W | 24V/240W |
| Foot Pads | Fuma Wheel (Universal Wheel) | Fuma Wheel (Universal Wheel) |
| Touch Screen | 3.5 Inch | 4.3 Inch Display Screen with Touch Screen (Klipper) |
| Output Power | 800/1000W | 800/1000W |
| Standard Nozzle | 0.4/0.6/0.8mm | 0.4~0.8mm |
| Silent Drive | TMC2209 Silent Drive | TMC2209 Silent Drive |
| Machine Size | 847 * 851 * 1010 (mm) | 850 * 851 * 1010 (mm) |
| Printing Principles | Fused Layer Manufacturing (FFF) | Fused Layer Manufacturing (FFF) |
| Print Size | 600 * 600 * 600mm | 600 * 600 * 600mm |
| Language | Chinese, English, Japanese, Korean, Russian, German, French, Spain | Chinese, English |
| Power Outage Continuation | Support | / |
| Material Breakage Detection | Support (Optoelectronics) | Support (Mechanical) |
| E Motor | 4240 Stepper Motor | 36 Stepper Motor Circular Cake Motor |
| Extruder | BMG Extruder | All Metal Mini Extruder |
| Belt Tension Adjustment | Screw Pull | Spring Extension Adjustment |
| Printing Speed | 20-150mm/s, Acceleration 3000/s² (Suggested 60mm/s) | Print Head Maximum Movement Speed is 300mm, with an Acceleration of 10000/s² (Recommended 150mm/s) |
| Print Thickness | 0.1-2.0mm (Optional According to Nozzle) | 0.1-0.8mm (Optional According to Nozzle) |
