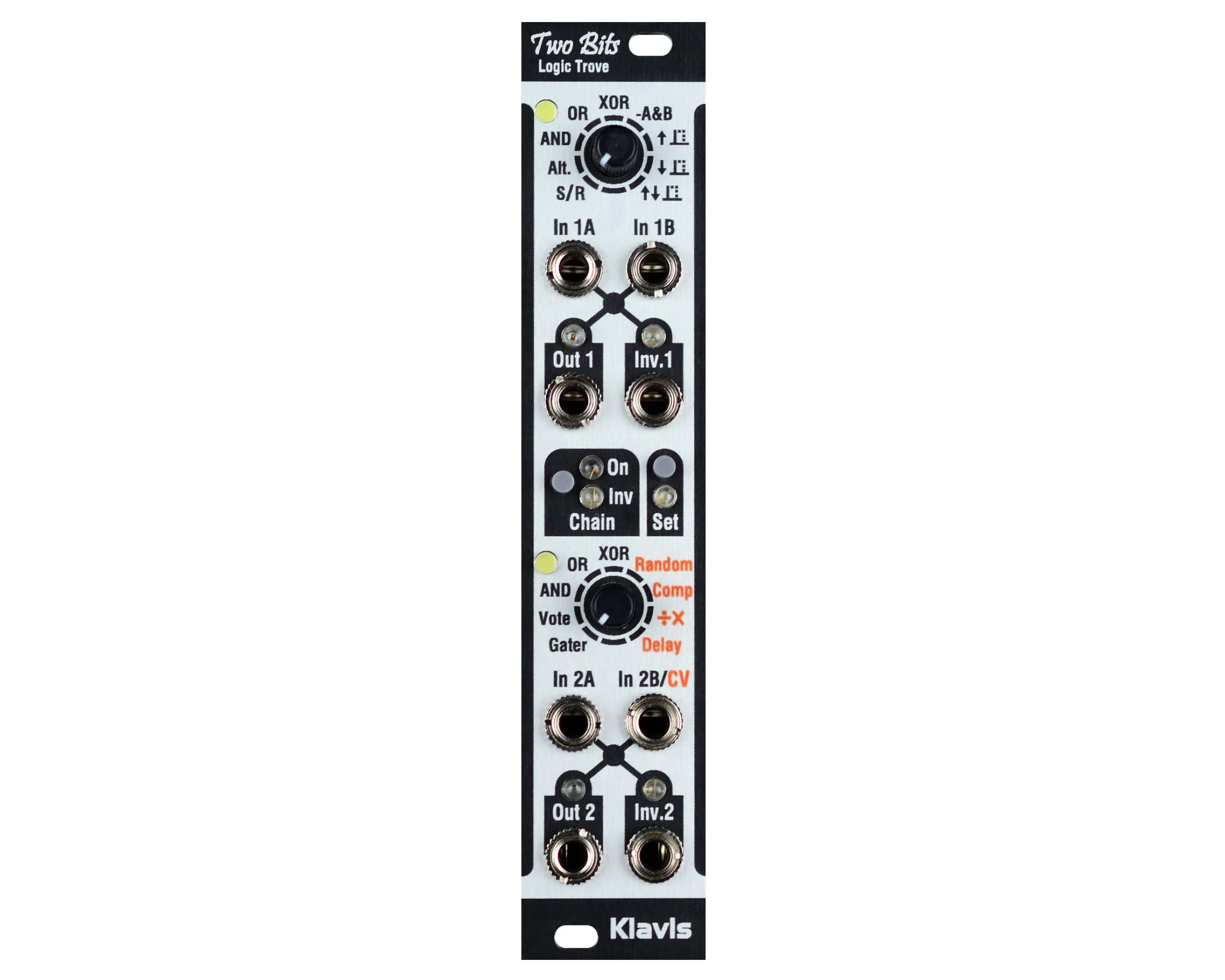

Name: Klavis Two Bits - Silver
SKU: 544795

Product Details ＋

Two dual-input sections can be used independently, put in parallel for 4-input wide logic, or chained for more advanced processing. Each section presents normal and inverted outputs. The two sections offer a set of common and specific functions for a total 15 different ones. Several functions offer real-time CV control for dynamic changes of the conditions. All time-related functions can be independently user-adjusted and are saved automatically. LEDs tell permanently the actual status of all outputs.

Features • Two dual-input logic processors • 15 different functions • Simultaneously available normal and inverted outputs • LEDs on all outputs • Chaining can be activated and inverted by a dedicated button with LEDs • Chaining does not waste any input or output; an additional virtual input is created in the second section • Functions with duration, voltage, percentage, and ratio are user editable. • User settings are stored automatically • Random pass, voltage comparator, clock mult/div and delay line functions allow CV control • White LEDs next to the pots confirm the matching of knob position and function • The outputs can be Ored by simple shorting in a multiple • Firmware upgradeable by playing an audio file • Low consumption, skiff-friendly & compact module • Complements Klavis’ Logica XT with a varied feature set

Specifications • 5hp width • 21mm/0.83' behind panel • 31mA 12V • 1mA -12V • 0mA 5V
